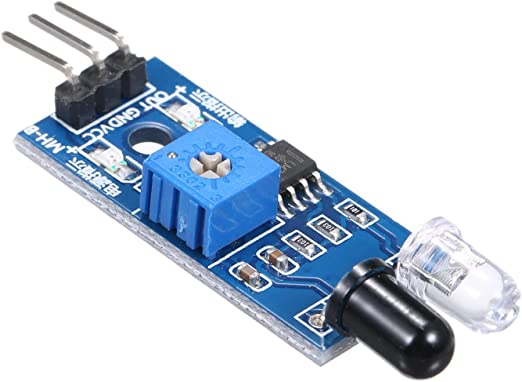

IR Sensor

IR Sensor

Dhs. 20.00
Dhs. 90.00 Dhs. 20.00
Sale Sold out
Tax included. Shipping calculated at checkout.
  • When the module detects an obstacle in front of the signal, the green indicator on the board would light on the level. And the OUT port su low signal output.
  • The module detects the distance of 20~300mm and angle of 35 °.
  • The detective distance can be adjusted by potentiometer. Clockwise adjusts potentiometer, distance increases; counterclockwise adjusts potentiometer, distance decreases.
  • The reflectivity and shape of target is the key to detect the distance.
  • The sensor module output port OUT can be directly connected to the microcontroller IO port, or directly drive a 5V relay. Connection mode: VCC-VCC; GND-GND; OUT-IO.
