MPU-9265 9-Axis IMU Sensor Module

MPU-9265 9-Axis IMU Sensor Module

Dhs. 30.00
Dhs. 30.00
Sale Sold out
Tax included. Shipping calculated at checkout.

🧭 MPU-9265 · 9-Axis IMU Sensor

Gyroscope · Accelerometer · Magnetometer · DMP™

9 DOF I2C / SPI 16-bit ADC MotionFusion™

The MPU-9265 is the ultimate 9-axis motion tracking powerhouse — combining a 3-axis gyroscope, 3-axis accelerometer, and 3-axis magnetometer into one tiny package. Powered by InvenSense's MotionFusion™ DMP, it delivers real-time, accurate orientation data for drones, robots, RC vehicles, wearables, and any application where knowing exactly how something is moving matters.

⚡ Triple-Sensor Architecture

🌀
Gyroscope
±250 / ±500 / ±1000 / ±2000 °/s
16-bit resolution
3.2mA operating
📐
Accelerometer
±2g / ±4g / ±8g / ±16g
16-bit resolution
450μA operating
🧲
Magnetometer
±4800μT full scale
14-bit resolution
280μA at 8Hz

🏆 Why the MPU-9265?

  • 🎯 MotionFusion™ DMP — On-chip Digital Motion Processor handles complex sensor fusion so your microcontroller doesn't have to
  • ⚡ Ultra-low power — Sleep mode at just 8μA; perfect for battery-powered and wearable applications
  • 📡 Dual Interface — I2C (400kHz) and SPI (up to 20MHz) for maximum compatibility with Arduino, ESP32, Raspberry Pi, and more
  • 💾 512-byte FIFO Buffer — Burst-read capability reduces CPU load and prevents data loss
  • 🌡️ Built-in Temperature Sensor — Monitor operating conditions directly from the same chip
  • 💥 10,000g Shock Tolerant — Rugged MEMS structure hermetically sealed at the wafer level

🚀 Perfect For

🚁 Drones & UAVs 🤖 Robotics & Arms 🚗 RC Vehicles ⌚ Wearable Devices 🧭 Navigation Systems 🎮 Motion Controllers 📱 IoT Projects 🛰️ AHRS / Flight Controller

📋 Full Specifications

Parameter Value
Chip MPU-9265 (MPU-9250 compatible)
DoF 9 Degrees of Freedom
Supply Voltage 2.4V – 3.6V (VDD)
Communication I2C (400kHz) / SPI (1MHz–20MHz)
Gyro Full-Scale Range ±250 / ±500 / ±1000 / ±2000 °/s
Accel Full-Scale Range ±2g / ±4g / ±8g / ±16g
Magnetometer Range ±4800 μT
ADC Resolution 16-bit (all axes)
FIFO Buffer 512 bytes
Operating Temperature -40°C to +85°C
Gyro Operating Current 3.2 mA
Accel Operating Current 450 μA
Sleep Mode Current 8 μA
Shock Tolerance 10,000g
Package Size 3 × 3 × 1 mm (QFN)
Pin Spacing 2.54mm standard
Module Size ~15 × 25 mm

📦 Package Includes

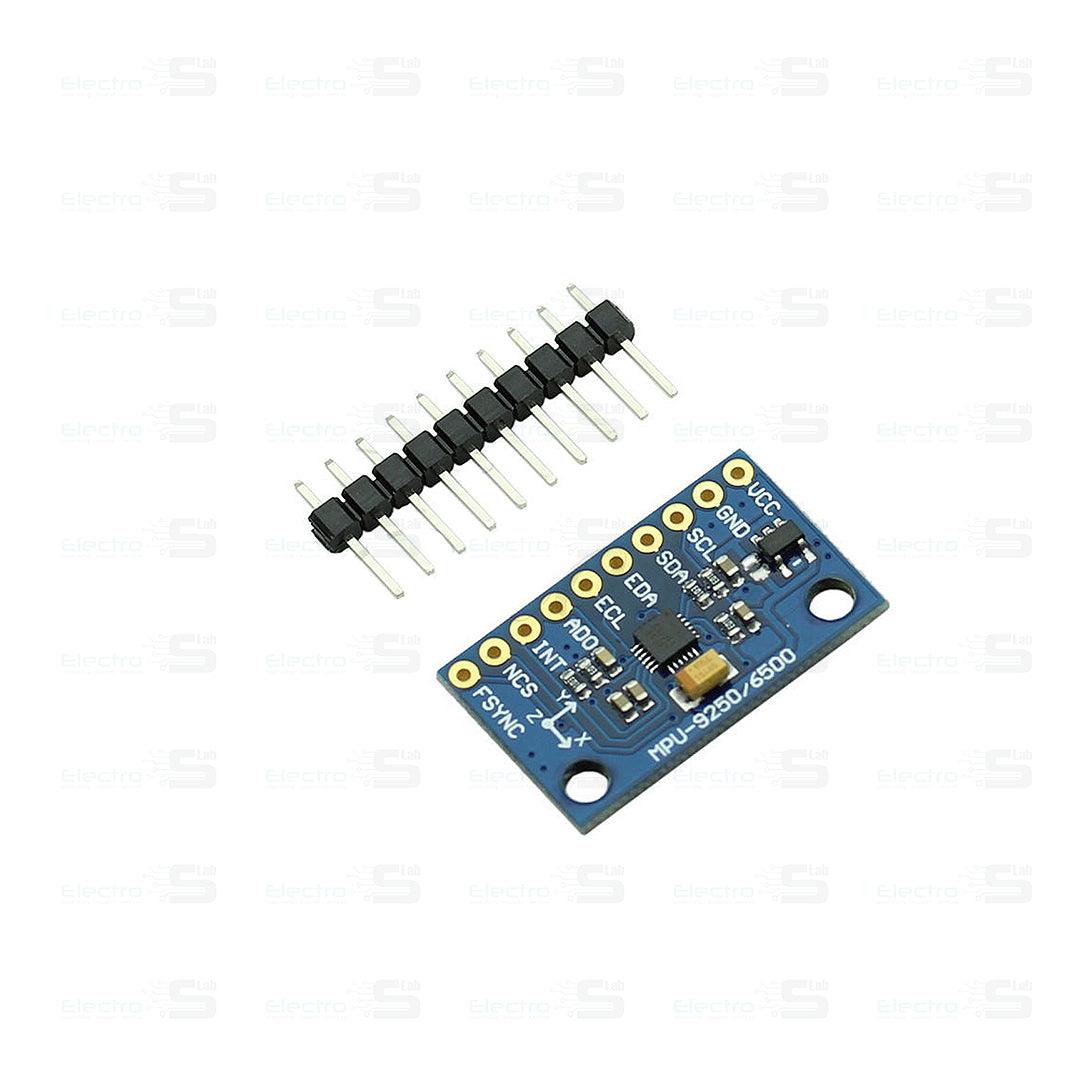

  • ✅  1× MPU-9265 9-Axis IMU Sensor Module
  • ✅  1× Pin Header (optional soldering)

🛰️ Know exactly where you are. Know exactly how you move.

The MPU-9265 — 9 axes of precision. One tiny board. Infinite possibilities.
