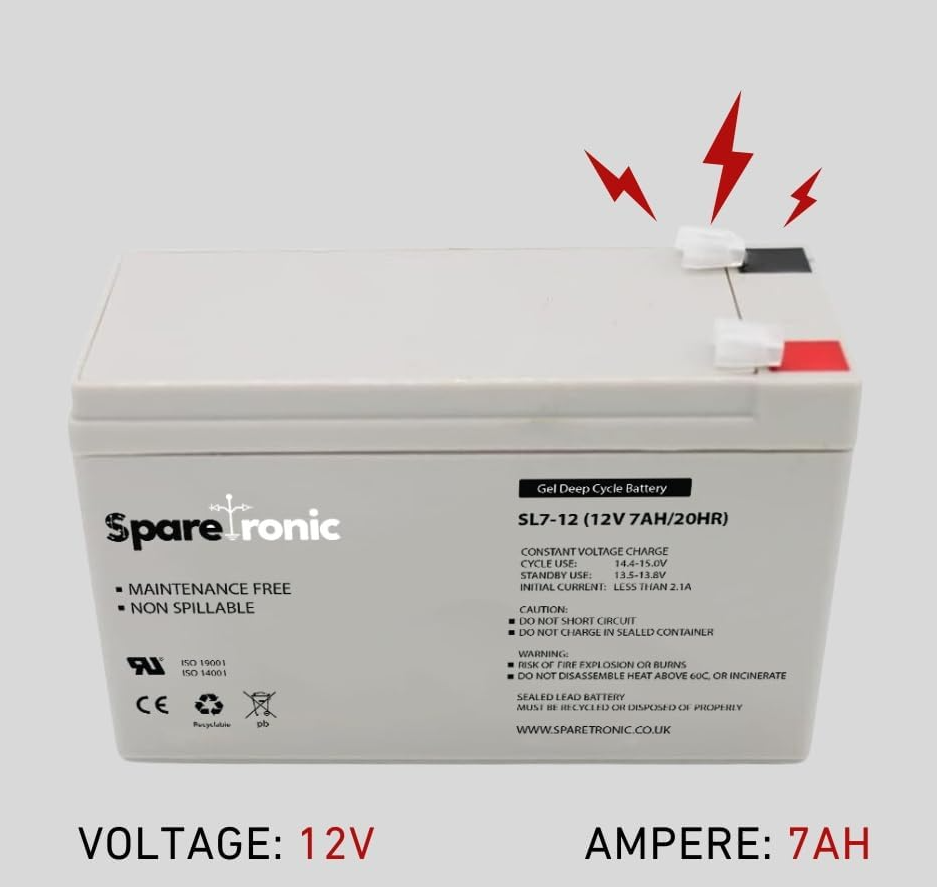

12 Rechargeable Lead acid Battery 7Ah

Nominal Voltage 12V   Nominal Capacity
(20HR) 7AH Terminal Type Standard Terminal F1 Optional
Terminal F2   Container
Material Standard Option ABS Flame
Retardant Option (FR) ABS (UL94:VO)   Rated Capacity 12.0 AH/0.60A (20hr,1.80V/cell,
25°C / 77°F)   11.2 AH/1.12A (10hr,1.80V/cell,
25°C / 77°F)   10.2 AH/2.04A (5hr,1.75V/cell, 25°C
/ 77°F)   9.2 AH/3.06A (3hr,1.75V/cell, 25°C
/ 77°F)   7.54AH/7.54A (1hr,1.60V/cell, 25°C
/ 77°F) Max Discharge
Current 180A (5s)   Internal
Resistance Approx 14mΩ

Part
Number:  UL12-12
Length:  151 ± 2mm (5.95
inches)
Width:  98 ± 2mm (3.85
inches)
Container
Height:  95 ± 2mm (3.74
inches)
Total Height
(with terminal):  101 ± 2mm (3.98
inches)
Approx.
Weight:  Approx. 3.40 kg
(7.49lbs)
