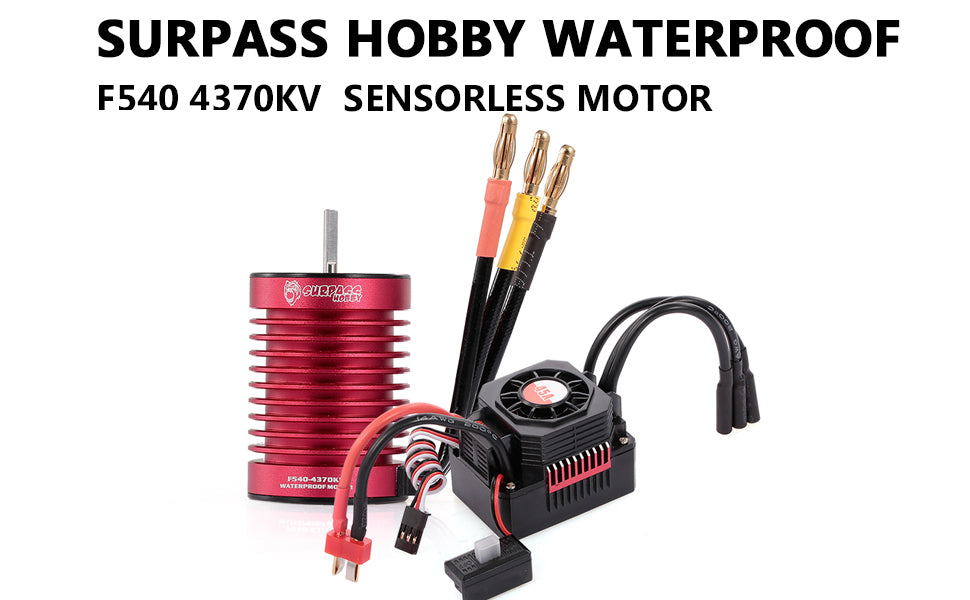

Brushless DC motor + ECU unit

Brushless DC motor + ECU unit

Dhs. 290.00
Dhs. 290.00
Sale Sold out
Tax included. Shipping calculated at checkout.

About this item

  • 4 pole 12 slot high-torque motor design, Suit for 1/10 scale RC car.
  • CNC machined 6061 T6 billet aluminum heatsink can.
  • High purity copper windings maximizes efficiency,Precision engineered for maximum energy conversion.
  • Precision balanced rotor, smoothness for best reliability and maximum RPM.
  • More economical to make a combination sell of motor and ESC, customers no need to choose them separately.

  • Specifications:

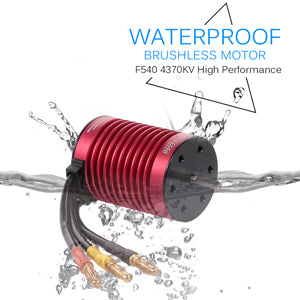

  • Motor Specifications:
  • Watts: 820W
  • Max voltage: <12V
  • Max amps: 66A
  • KV(RPM/Volt): 4370KV
  • Max RPM: 50000
  • Diameter: 36mm
  • Length: 50mm
  • Shaft length: 15mm
  • Shaft diameter: 3.175mm
  • Connector: 4mm gold

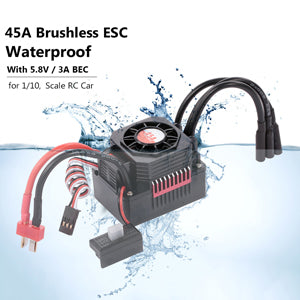

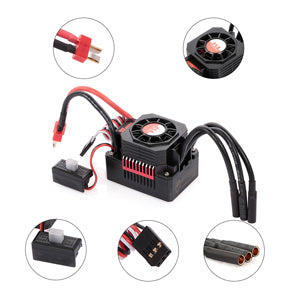

  • ESC Specifications:
  • Item name: Waterproof ESC
  • Continue current: 45A
  • Burst current: 240A
  • Battery: 2-3S Lipo / 4-9S NiMH
  • BEC output: 5.8V / 3A
  • Power supply plugs: T plug male





Package Information:



  • Package size: 14.5 * 8.6 * 5.3cm / 5.71 * 3.38 * 2.09in
  • Package weight: 295g
  • Gift box package
  • Package List:
  • 1 * 4370KV motor
  • 1 * 45A ESC
  • 2 * User manual
