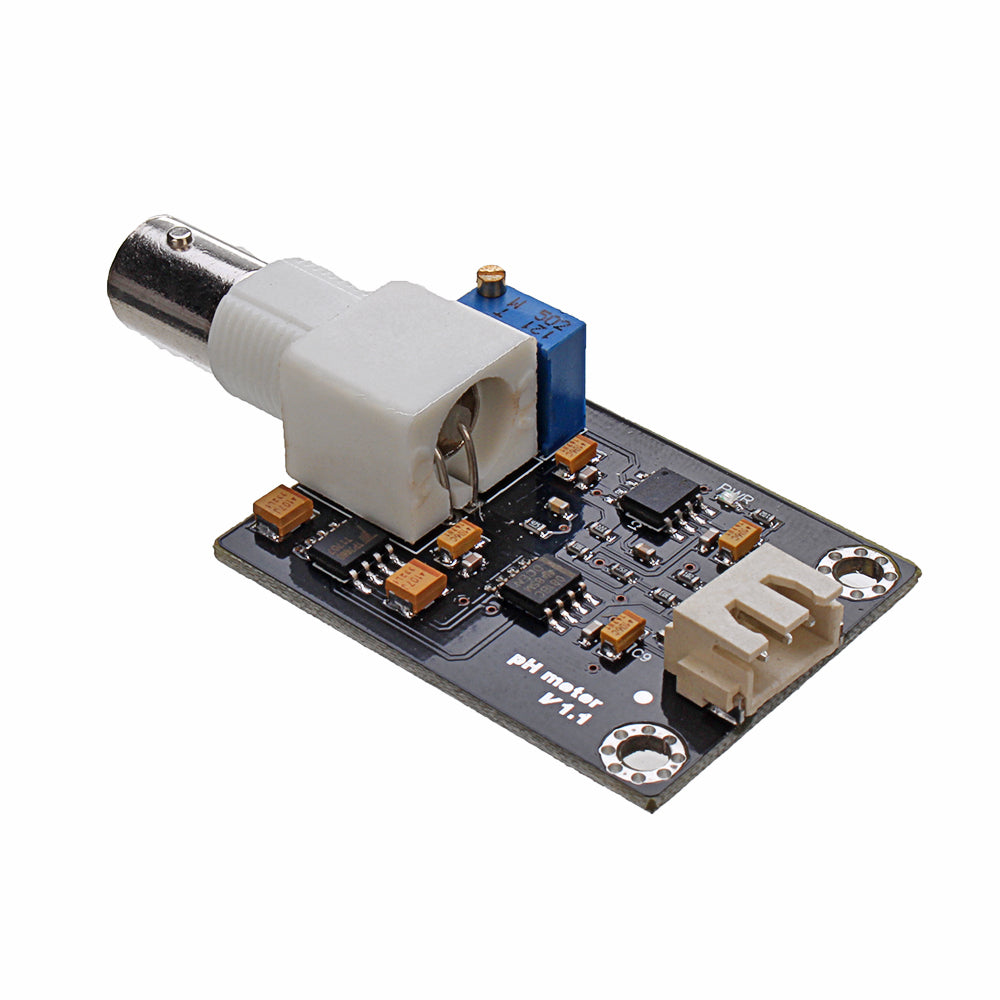

pH sensor

A pH meter is a scientific instrument that measures the hydrogen-ion activity in water-based solutions, indicating its acidity or alkalinity expressed as pH. ... The difference in electrical potential relates to the acidity or pH of the solution.

 In the process world, pH is an important parameter to be measured and controlled. The pH of a solution indicates how acidic or basic (alkaline) it is.... sensor, which includes a measuring electrode, a reference electrode, and a temperature sensor; a preamplifier; and an analyser or transmitter.

Specification:

Module Power : 5.00V
Module Size : 43 x 32mm
Measuring Range :0 - 14PH
Measuring Temperature: 0 - 60 °C
Accuracy : ± 0.1pH (25 °C)
Response Time : ≤ 1min
pH Sensor with BNC Connector
pH2.0 Interface ( 3 foot patch )
Gain Adjustment Potentiometer
Power Indicator LED

Package includes:

1 x PH Sensor Module
1 x Probe
1 x Cable
