Valve Actuator for water

Valve Actuator for water

Dhs. 120.00
Dhs. 120.00
Sale Sold out
Tax included. Shipping calculated at checkout.

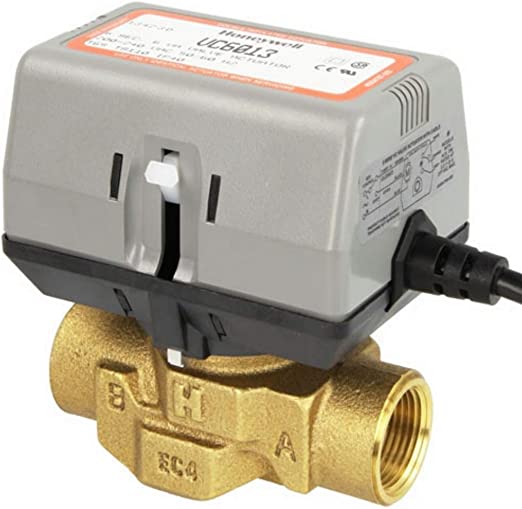

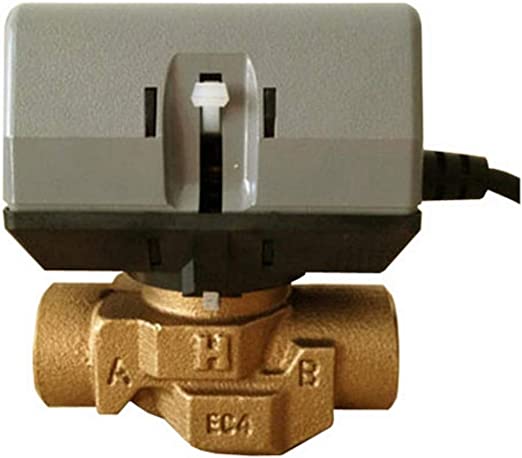

  • Replaceable Honeywell VC Series balanced 2-position hydronic valves are used in domestic and small commercial heating and cooling applications to control the flow of hot and/or cold water. They consist of an actuator, valve and a cartridge assembly
  • 2-way valves are designed for on-off zone control of domestic systems. 3-way valves can be piped for either diverting or mixing valve applications in domestic central heating and/or cooling systems. Both versions can be used to control individual fan coil, radiator, space heater or convector applications
  • VC Series hydronic valves are designed to take advantage of sinusoidal valve actuator travel, and therefore operate silently and reduce water hammer. Through internal logic the actuator only takes power while driving the valve to the commanded position.
  • The actuator head is removable without affecting the integrity of the water system. All actuator versions are interchangeable with any valve body, offering the highest flexibility for boiler production line assembly, and maintenance. The valve piston construction allows for port sealing that is independent of the differential pressure across the valve. Flow through the 2-way valve can be in either direction, so the ports are not designated.
  • Features Rugged design Control by a low or line voltage SPST or SPDT controller Minimal actuator power consumption Pressure differential up to 4 bar Double insulated actuator Quick connect electrical connections Quick and easy replacement of moving parts Actuator head installation does not require draining of the system High flow rate capacity
