Wide range wireless Receiver
Wide range wireless Receiver
Product Description

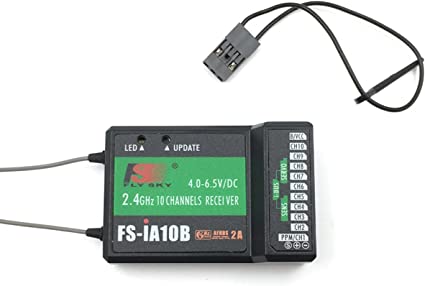

FS-iA10B Specifications:
Item: FS-iA10B Receiver
Channels: 10
Model Type: Fixed-Wing/Glider/Helicopter
RF Range: 2.4055-2.475GHz
RF Channel: 140
RF Receiver Sensitivity: -105dBm
Bandwidth: 500KHz
2.4GHz System: AFHDS 2A
Modulation Type: GFSK
Power: 4.0-6.5V DC
Antenna Length: 26mm (Dual Antenna)
Weight: 17.6g
Size: 50.6*34.9*14.9mm
i-BUS Port: Yes
Data Acquisition Port: Yes
Certificate: CE0678,FCC
Package Included:
1X FS-iA10B Receiver
1X Bind plug
No included the battery
How to setup 10 Channels?
I6X open 10 channel method
Long press the OK button for 2 seconds to enter the menu setting
Select System setup to enter,
Press down to the last item Aux SWitches auxiliary switch setting to enter, SwA B C D is set to select On to turn on
Ch6, changed to Ch10
Long press the CANCH key to automatically save and exit
